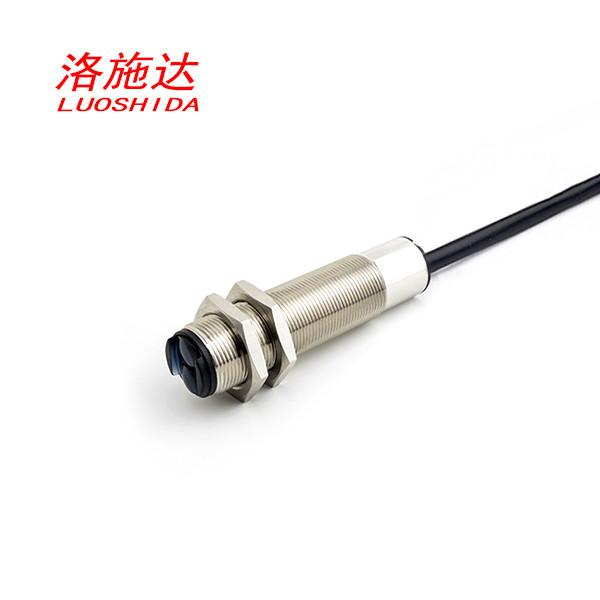

DC 3 wire 24V M18 diffuse photoelectric proximity sensor for detection
Products description:
Series : DC M18 diffuse photoelectric sensor
Size : M18*1*68mm
Housing Material : brass nickel plated
The light source : Infrared light(880nm)
Sensing Distance Sn(mm): 500mm/1M adjustable
Operating Voltage : DC 10-30V
Output function : NPN/PNP NO/NC
Connection : 2M PVC cable
Datasheet of the sensor :
| DC M18 diffuse photoelectric sensor |
| Size | M18*73mm |
| Mode | Diffuse |
| Sensing Distance Sn:(mm) | 300mm adjustable | 500mm adjustable | 1M adjustable |
| Housing Material | Brass Nickel plated |
| Operating Voltage | 10-30VDC |
| DC Ripple | ≤10% |
| Temperature Drift | ±10%Sn |
| Switching Hysteresis | ＜15% |
| The light source | Infrared light (880nm) |
| Max.Load Current | 200mA |
| No Load Current | ≤30mA |
| Voltage Drop | ≤2.5V |
| Sensitivity adjustment | Trimmer 1tum |
| Response Time | ＜5ms |
| Short Circuit Protection | Yes |
| Electrical transient protection | Yes |
| Operating Temperature | 0- 55°C |
| Environmental humidity | 35 to 85% RH |
| The maximum intensity | ≤10.000Lux |
| Protection Category | IP65 |
| object size | 20 *20cm white board |
| Connection | D5 3*0.34/4*0.34 2M PVC |
| DC 3-wire 10-30V NPN NO | FTD-18300NO | FTD-18500NO | FTD-181MNO |
| DC 4-wire 10-30V NPN NO+NC | FTD-18300NS | FTD-18500NS | FTD-181MNS |
| DC 3-wire 10-30V PNP NO | FTD-18300PO | FTD-18500PO | FTD-181MPO |
| DC 4-wire 10-30V PNP NO+NC | FTD-18300PS | FTD-18500PS | FTD-181MPS |
FAQ :
Shipping ways
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.
Payment term and delivery time
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
the sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
